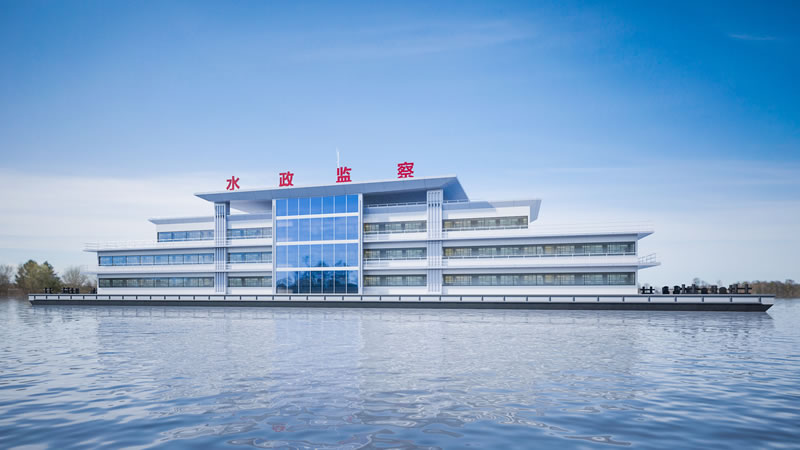

80m Water administration barge

作者:admin     点击:1496      时间:2016-04-27



     The barge is used for law enforcement and berth on water, of which the structure and stability comply with the regulations of inland water navigating zone.  It is non-propelled anchoring ship, which is the monohull, single deck Symmetric sleigh – shaped bow and stern with 3 level deckhouse and steel structure. The hull structure is designed strictly abided by “Steel Regulation”, with transverse frame, grade A steel. The linear is simple but modern and solemn.
     It is a high-tech enterprise, which based upon Wuhan University of Technology and industrializes the long-termed research crystals in Naval Architecture and marine engineering, put research and design all together with ship manufacturing.
The company is invested and organized by the following cofounders: Wuhan Tiangao Welding CO., LTD.  (stock code:831559)、
     Wuhan University of Technology Industrialization Group、Wuhan Nanhua Industrial Equipments Engineering CO.,LTD.(stock code: 832699), as well as famous professors and core technician team in the field of high speed ship manufacturing.
     Located in Fuhua building of Wuhan University of Technology Industry Group, with 1200 square meters office area, the head company is qualified by ISO9001, and acquired the Certificate of General Ships Design Class A Qualification.
     Leading by creation, this company provides customers products and services with excellent quality at reasonable prices. All the team staff are with or above the bachelor degree, 20 of which graduated from foreign well-known universities. Our company leans mainly on rich design experiences, advanced technologies with best efforts to ensure the quality and linear aesthetic.
     Sincerely grateful for all the supports of our friends!
